🌳 Decision Tree Classification Algorithm in Machine Learning

Decision Tree Classification Algorithm

Using data to inform decisions is a widespread practice in the field of machine learning. The Decision Tree Classification Algorithm is among the most popular and user-friendly algorithms for these kinds of decision-making tasks. Whether you’re a beginner or a data science enthusiast, understanding decision trees can open up a new level of insight into how machines learn and predict outcomes.

🧠 What is a Decision Tree?

A Decision Tree is a Supervised Learning algorithm used for both classification and regression tasks, but it’s more commonly used for classification problems. It mimics human decision-making logic in a tree-like structure — with decision nodes, branches, and leaf nodes.

Decision Nodes: Represent one of the dataset’s attributes or features.
Branches: Represent decision rules.
Leaf Nodes: Display the result (class label).

Imagine asking a series of yes/no questions to reach a final decision — that’s essentially how a decision tree works.

Complete Python Course with Advance topics:-Click Here
SQL Tutorial :-Click Here

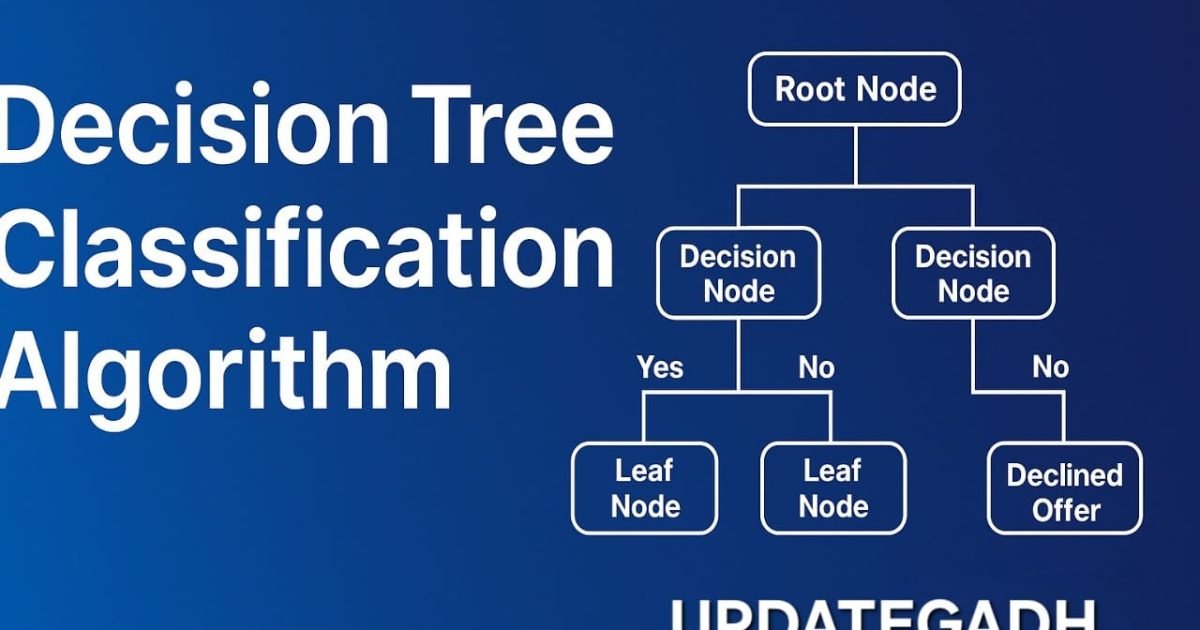

🌿 Structure of a Decision Tree

A decision tree starts with a root node (representing the entire dataset) and splits into sub-nodes based on certain conditions, forming a tree-like structure.

Root Node: The node at the top, where choices are made.
Splitting: Separating a node into smaller nodes.
Sub Tree: The decision tree’s branch.
Pruning: The process of removing irrelevant branches to avoid overfitting.
Parent/Child Node: The hierarchy among the nodes.

📌 Why Use Decision Trees?

Here’s why decision trees stand out among many machine learning algorithms:

🧩 Easy to understand: Follows a decision-making process similar to humans.
🪵 Visual representation: Provides a tree structure that is easy to understand.
🎯 No feature scaling required: Less sensitive to outliers and feature transformations.
🛠️ Handles both numerical and categorical data.

⚙️ How Does the Decision Tree Algorithm Work?

Here’s how a decision tree classifies a record:

Start at the root node.
Compare the attribute with dataset values.
Follow the corresponding branch.
Repeat until a leaf node is reached.

🌱 Steps:

Start with the full dataset S.
Use an Attribute Selection Measure (ASM) to find the best attribute.
Split S based on the best attribute.
For every split, create a decision tree node.
Continue until the leaf node is reached and no more splitting is feasible.

🔍 Attribute Selection Measures (ASM)

Choosing the right attribute at each step is crucial. Two common ASMs are:

1. Information Gain

Measures change in entropy after a dataset split.
The higher the information gain, the better the attribute. Formula: Information Gain = Entropy(S) - Σ [(Weighted Avg) * Entropy(subset)] Entropy: Entropy(S) = -P(yes) log2 P(yes) - P(no) log2 P(no)

2. Gini Index

Measures impurity in the dataset.
Lower the Gini Index, the better the attribute. Formula: Gini Index = 1 - Σ (Pj)^2

Machine Learning Tutorial:-Click Here

✂️ Pruning: Creating an Optimal Tree

A large tree might overfit, and a small one may underfit. Pruning trims the tree to strike the perfect balance:

Cost Complexity Pruning
Reduced Error Pruning

✅ Advantages of Decision Tree

Easy to interpret.
Works well with both numerical and categorical data.
Requires minimal data preprocessing.
Great for exploratory data analysis.

⚠️ Disadvantages of Decision Tree

Prone to overfitting, especially on noisy datasets.
Performance can degrade with too many class labels.
Unstable with small variations in data.
Can create biased trees if some classes dominate.

🐍 Python Implementation of Decision Tree Classifier

Let’s implement a decision tree classifier using the user_data.csv dataset.

Step 1: Data Preprocessing

import numpy as np
import matplotlib.pyplot as plt
import pandas as pd

# Load dataset
dataset = pd.read_csv('user_data.csv')
X = dataset.iloc[:, [2, 3]].values  # Features: Age and EstimatedSalary
y = dataset.iloc[:, 4].values       # Target: Purchased

# Split data
from sklearn.model_selection import train_test_split
X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.25, random_state=0)

# Feature scaling
from sklearn.preprocessing import StandardScaler
sc = StandardScaler()
X_train = sc.fit_transform(X_train)
X_test = sc.transform(X_test)

Step 2: Fitting the Decision Tree Classifier

from sklearn.tree import DecisionTreeClassifier
classifier = DecisionTreeClassifier(criterion='entropy', random_state=0)
classifier.fit(X_train, y_train)

Step 3: Predicting the Test Set Results

y_pred = classifier.predict(X_test)

Step 4: Evaluating Using Confusion Matrix

from sklearn.metrics import confusion_matrix
cm = confusion_matrix(y_test, y_pred)
print(cm)

Step 5: Visualizing the Training Set Result

from matplotlib.colors import ListedColormap

X_set, y_set = X_train, y_train
X1, X2 = np.meshgrid(
    np.arange(start=X_set[:, 0].min()-1, stop=X_set[:, 0].max()+1, step=0.01),
    np.arange(start=X_set[:, 1].min()-1, stop=X_set[:, 1].max()+1, step=0.01)
)

plt.contourf(X1, X2, classifier.predict(np.array([X1.ravel(), X2.ravel()]).T).reshape(X1.shape),
             alpha=0.75, cmap=ListedColormap(('red', 'green')))
plt.xlim(X1.min(), X1.max())
plt.ylim(X2.min(), X2.max())

# Plot the points
for i, j in enumerate(np.unique(y_set)):
    plt.scatter(X_set[y_set == j, 0], X_set[y_set == j, 1],
                c=ListedColormap(('red', 'green'))(i), label=j)

plt.title('Decision Tree Classifier (Training set)')
plt.xlabel('Age')
plt.ylabel('Estimated Salary')
plt.legend()
plt.show()

🔚 Conclusion

Decision Trees are one of the most effective and intuitive classification tools in machine learning. They give a clear visual representation of decision-making processes, handle both categorical and numerical data, and require minimal data preparation.
