Railway Management System in PHP and MySQL

Are you a computer science student looking for an impressive, hands-on final-year project? Or perhaps a budding developer eager to sharpen their backend web skills? Building or implementing a Railway Management System in PHP and MySQL is one of the best ways to master real-world CRUD (Create, Read, Update, Delete) applications and web development fundamentals.

In this comprehensive guide, we are breaking down a highly reliable and responsive Railway Management System open-source repository hosted on GitHub by bit-page. We will look into its features, the tech stack used, and give you a step-by-step setup guide to run it on your local server (XAMPP/WAMP).

Complete Advance AI Topics: Click Here
Real Time Projects on YouTube:- DecodeIT

What is the Railway Management System in PHP?

The Railway Management System is a lightweight, web-based platform tailored to automate and streamline train ticket reservations, schedule tracking, and database administration.

Designed natively with PHP and powered by a MySQL backend, the application separates actions into two distinct dashboards: Admin Control Panel and User Account Dashboard. This role-based authentication ensures data security while delivering an intuitive experience to the regular commuter.

Core Features of the Project

Unlike overly complex corporate systems, this PHP project is engineered keeping readability and academic presentation in mind. Here is what it brings to the table:

Role-Based Authentication: Secure, individual login portals for both Administrators and general Users.
Dynamic Train Scheduling: Admins can effortlessly create, edit, or remove train routes, timings, and capacity constraints directly from the dashboard.
Ticket Booking Engine: Users can check train availability, request seat reservations, and view booking history.
PDF Ticket Generation: Built-in integration with the dompdf library allows users to download and print formal reservation slips cleanly.
Responsive User Interface: Built using Bootstrap 5 and modern CSS, ensuring the portal works flawlessly on smartphones, tablets, and desktops.

Technical Stack Used

For student presentations, viva-voce, or project documentation files, you can copy this neat tech breakdown:

Frontend: HTML5, CSS3, JavaScript, and Bootstrap 5
Backend: Native PHP (Procedural/Object-Oriented approaches for easy editing)
Database: MySQL (Structured Relational Database)
Additional Libraries: dompdf (For automated PDF generation)

How to Download

Get This Project

The complete package is available so you can run, study, and submit it with confidence. It includes:

Full Source Code
Project Report
Synopsis
PPT Presentation

Demo Video

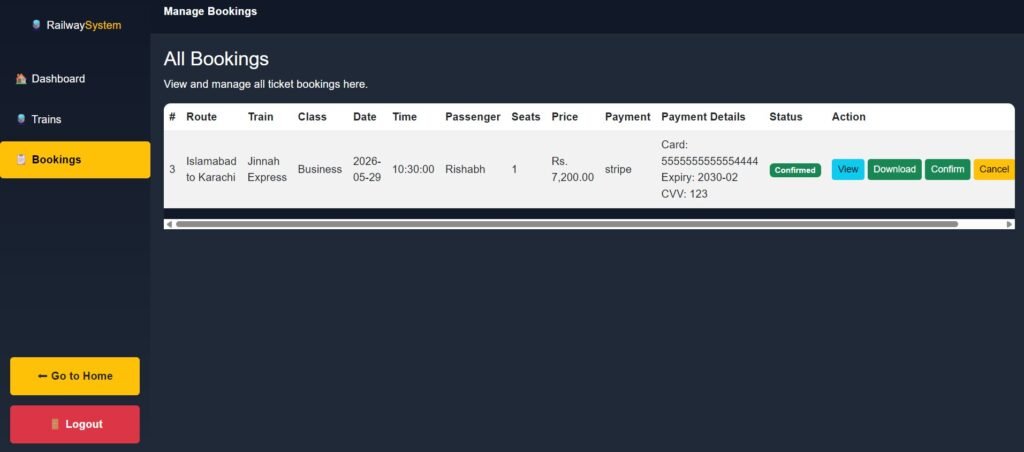

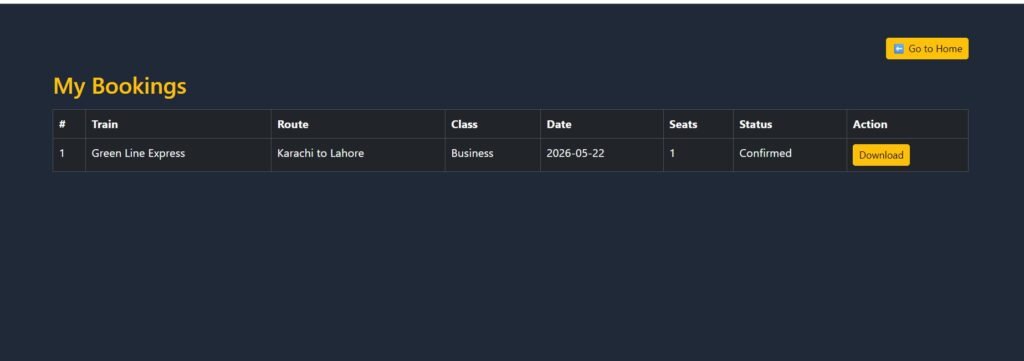

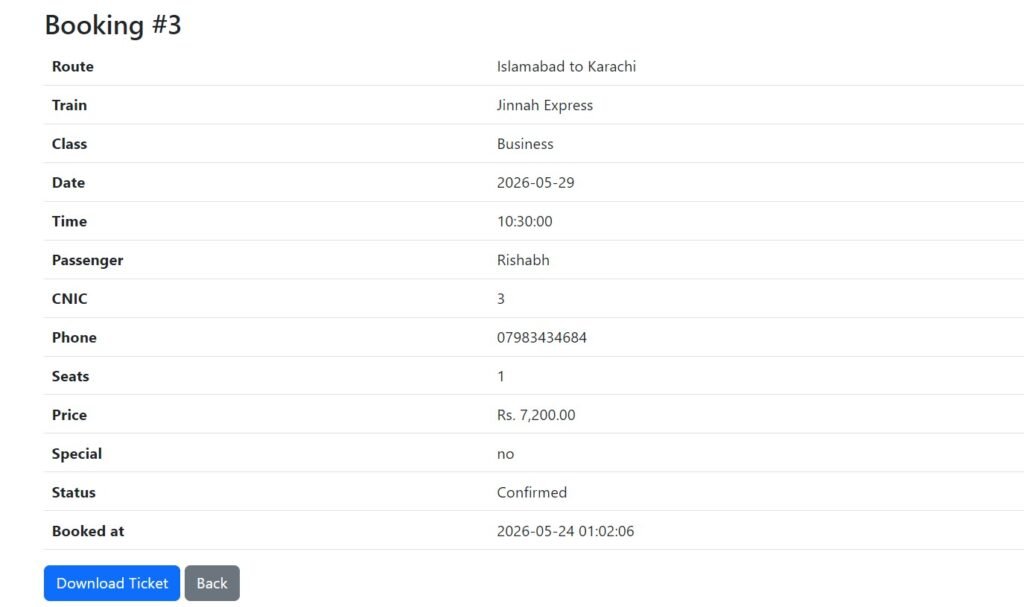

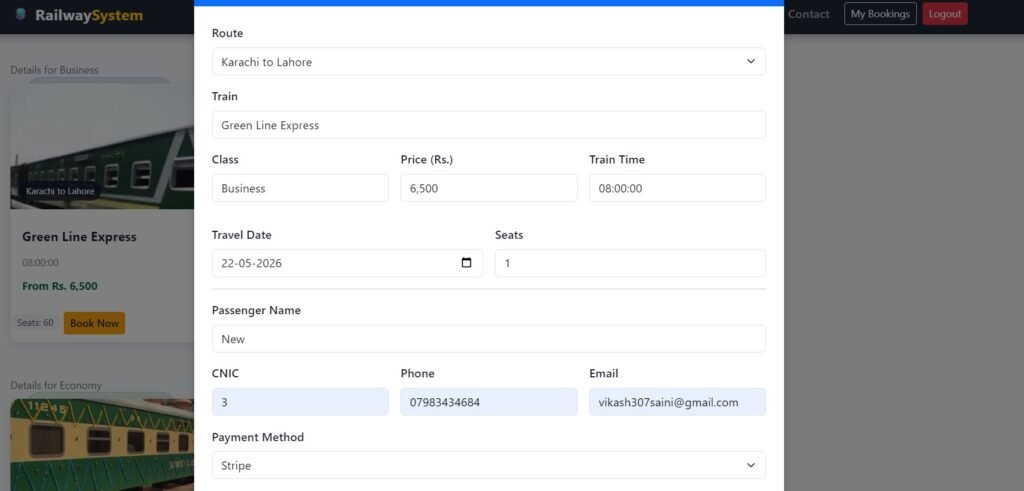

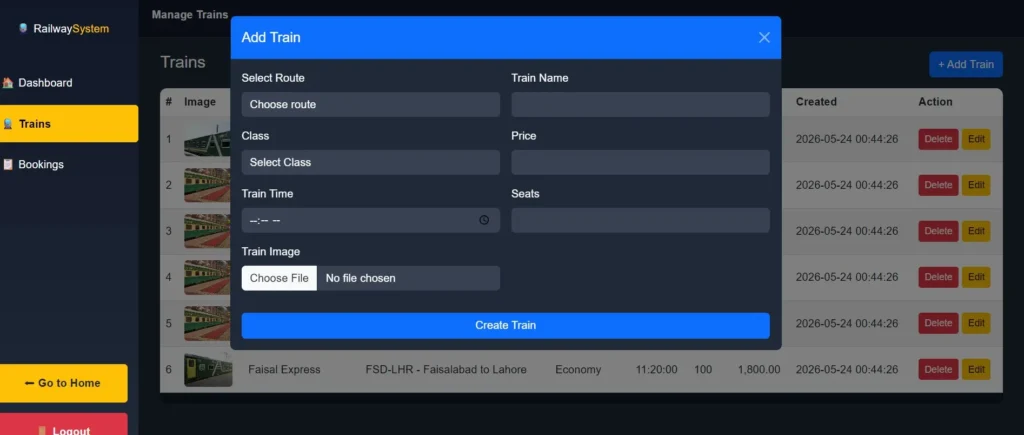

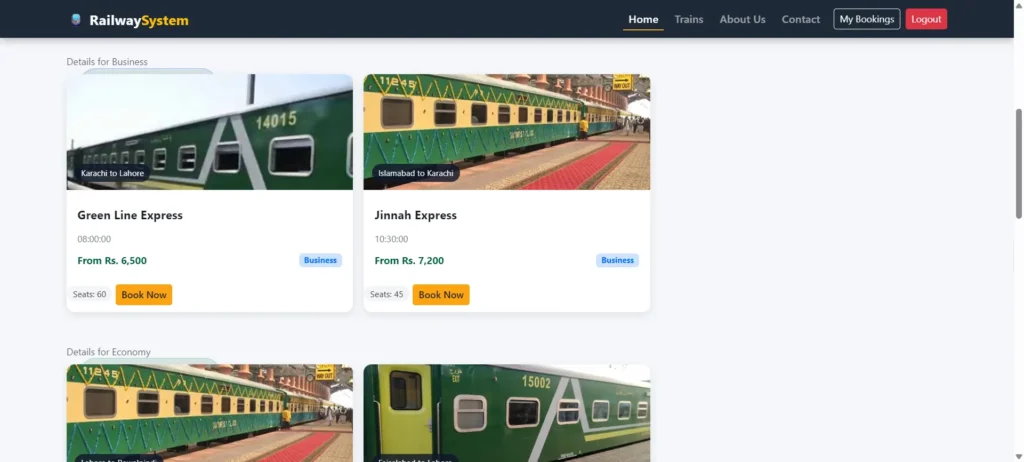

Screenshot

Railway Management System in PHP and MySQL

Step-by-Step Installation Guide (XAMPP/WAMP)

Follow these exact steps to successfully set up this project on your local machine without facing database connection errors.

Step 1: Check System Requirements

Ensure your local web server environment has the following active versions:

PHP Version: 7.2 or higher
MySQL Version: 5.6 or higher
Local Server: XAMPP, WAMP, or MAMP installed

Step 2: Download the Project Source Code

Download a .zip file. Extract the contents on your machine.

Step 3: Move Code to Server Directory

If you are using XAMPP, move the extracted folder into the C:\xampp\htdocs\ folder.
If you are using WAMP, move the folder into the C:\wamp\www\ folder.

(Tip: Rename the folder to something simple and short, like railway)

Step 4: Create and Import the MySQL Database

Open your web browser and navigate to .
Click on the Databases tab, type a name for your database (e.g., railway_management), and click Create.
Select your newly created database from the left-hand sidebar menu.
Go to the Import tab on the top menu.
Click Choose File and locate the .sql database backup file provided inside your extracted project folder.
Click Go / Import at the bottom. Your database tables will be generated automatically.

Step 5: Configure Database Connection

Open the project folder inside your preferred text editor (VS Code, Notepad++, etc.). Locate the database configuration file (commonly named connect.php or located inside an assets/db/ directory). Ensure the connection parameters match your local setup database credentials:

$servername = "localhost";
$username = "root"; // Default XAMPP username
$password = "";     // Default XAMPP password is empty
$dbname = "railway_management"; // Match your database name

Step 6: Run the Project Live

Open your browser and enter the following path into the URL bar:

(Be sure to replace railway with whatever you named your project folder in htdocs. Your Railway Management System is officially live on your localhost!

Common Troubleshooting Tips

If you experience any deployment errors, check these common configurations:

Database Connection Error: Verify your database name inside your connection script exactly matches what you typed in phpMyAdmin.
Page Not Found (404): Ensure your Apache and MySQL modules inside your local control panel are running turned on.
PDF Generation Errors: Ensure your local server folder permissions permit file creation for execution scripts.

Conclusion & Academic Verdict

The Railway Management System in PHP by bit-page provides a stellar foundation for university minor and major projects. It avoids convoluted framework architecture, giving students a crisp understanding of how frontend templates communicate with MySQL relational tables using native backend loops.

Frequently Asked Questions (FAQs)

1. What is the Railway Management System in PHP and MySQL?

The Railway Management System is a web-based application designed to manage train information, passenger details, railway ticket reservations, and booking records. It helps simplify railway reservation operations using PHP and MySQL.

2. What technologies are used in the Railway Management System project?

The project uses PHP for backend development, MySQL for database management, and HTML, CSS, and JavaScript for frontend development. XAMPP can be used to run the application on a local computer.

3. What are the main features of the Railway Management System?

The main features may include user registration and login, train information management, train search, ticket booking, passenger record management, PNR status checking, ticket cancellation, and administrative controls, depending on the project’s implementation.

4. How can I run the Railway Management System project in PHP?

Install XAMPP and start Apache and MySQL. Copy the project folder into the htdocs directory, create a MySQL database using phpMyAdmin, and import the provided SQL file. Configure the database connection details and open the project through http://localhost/your-project-folder/.

5. Is the Railway Management System project suitable for BCA and MCA students?

Yes, this project is suitable for BCA, MCA, B.Tech, and other computer science students. It helps students understand PHP programming, MySQL database connectivity, CRUD operations, session management, and railway reservation workflows.
