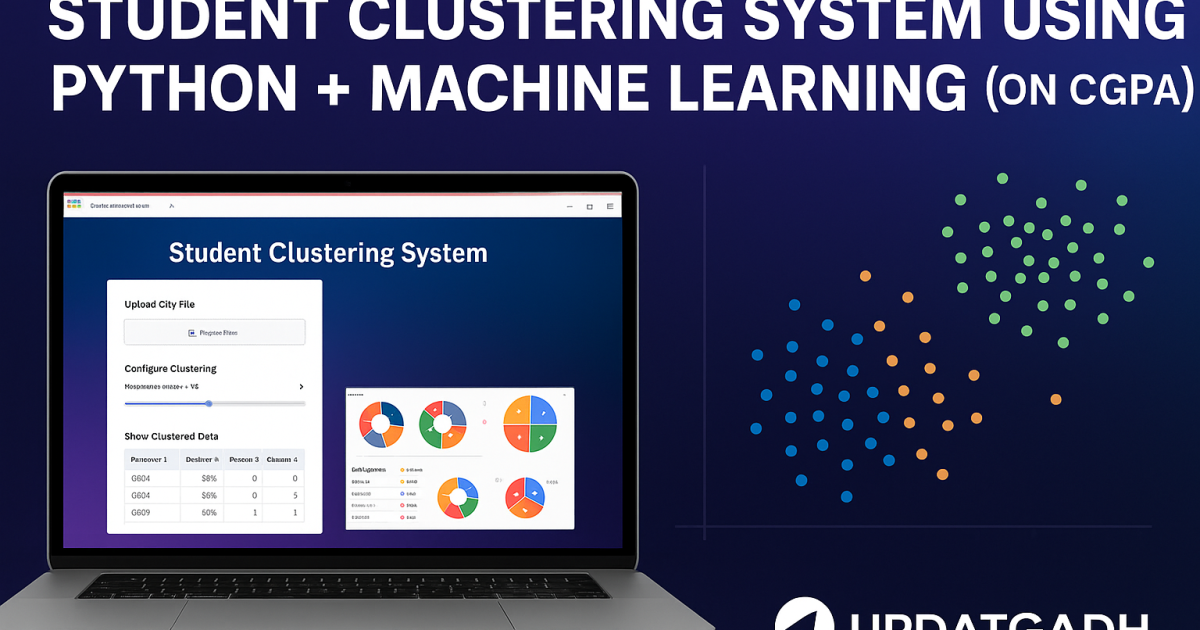

Student Clustering System using Python + Machine Learning (on CGPA)

Project Summary

The Student Clustering System is a simple yet effective web application developed using Python and Machine Learning. This project focuses on grouping students into meaningful clusters based on their CGPA and other numerical academic data. By applying unsupervised learning techniques, the system helps in understanding overall student performance patterns.

The application is built with Streamlit, which ensures a clean and interactive user interface that is easy to use even for beginners. Users can upload a CSV file containing student details such as roll numbers, names, and CGPA. Once the file is uploaded, the system automatically processes the dataset and applies the KMeans clustering algorithm to categorize students into different performance groups.

The results are presented in both tabular format and graphical visualizations, including scatter plots and cluster charts, making it easier to analyze the data. Additionally, the system provides an option to download the clustered results directly as a CSV file for further reporting or academic purposes.

This project is particularly useful for students and educators. Students can learn how machine learning algorithms like KMeans work on real data, while educators and institutions can use it to identify high-performing, average, or struggling students. By understanding these patterns, teachers can design better academic strategies and provide targeted support.

In short, the Student Clustering System combines data science concepts with a user-friendly web interface, making it a great project for both learning and practical applications in education.

Download New Real Time Projects :-Click here

 Technologies Used

• Python
• Streamlit – Web Interface
• Pandas – Data Manipulation
• scikit-learn – For KMeans Clustering & Data Scaling
• Seaborn / Matplotlib – Data Visualizations

Project Flow: Step-by-Step

1. Upload CSV File

• User uploads a .csv file.
• The system previews the data and filters only numeric columns for clustering.

2. Configure Clustering

• A slider allows the user to select the number of clusters (K).
• Data is standardized using StandardScaler.
• KMeans algorithm clusters the data.
• A new column Cluster is added to the dataset showing cluster labels.

3. Show Clustered Data

• The table with clusters is displayed.
• Users can download the clustered data as a CSV file.

4. Visualizations (Charts)

The system generates four types of visualizations to interpret the clusters:

• Bar Chart – Cluster Sizes: Shows the number of students in each cluster.
• Scatter Plot: Plots the first two numeric features, color-coded by cluster.
• Pie Chart: Represents the distribution of a selected numeric feature across clusters.

5. Cluster Info (Descriptions)

Interpretations based on CGPA:

• Cluster 0: Low CGPA (below 6.5)
• Cluster 1: Average CGPA (6.5 – 8.0)
• Cluster 2: High CGPA (above 8.0)

Key Features

The Student Clustering System comes with the following features:

• Upload Any Student-Related CSV File
  Users can upload any CSV dataset containing student details with numeric features (e.g., CGPA, marks, attendance).

• Automatic Column Selection
  The system intelligently detects and selects numeric columns from the dataset for clustering, avoiding manual preprocessing.

• Customizable KMeans Clustering
  The number of clusters can be set by the user, allowing flexibility in grouping students based on different academic requirements.

• Interactive Data Visualization
  Four types of interactive charts (scatter plots, cluster maps, and more) are generated to clearly display the clustering results.

• Downloadable Clustered Data
  Once clustering is complete, users can download the output file with cluster labels for further academic or research use.

• Works with Multiple Academic Datasets
  The system is not limited to CGPA; it can process any dataset containing numeric academic features, making it highly versatile.
