Vehicle Parking Management System Project

Vehicle Parking Management System Project in Java (JSP + Servlets + MySQL)

The Vehicle Parking Management System (VPMS) is a complete Java web application designed to manage parking operations efficiently. The system allows administrators and registered users to handle vehicle parking, monitor incoming and outgoing vehicles, manage vehicle categories, and generate reports.

This project is developed using Java Servlets, JSP, MySQL, Bootstrap, and Apache Tomcat. It demonstrates how a real-world parking lot system can be automated using a web-based dashboard.

This project is ideal for BCA, MCA, B.Tech, and MSc IT students looking for a final year project related to Java web development and database management.

Watch Project Explanation on YouTube

---

1. Project Overview

The Vehicle Parking Management System helps manage parking spaces, vehicle entries, and exits. It provides separate modules for administrators and registered users.

Module	Description
Admin Portal	Manage vehicles, categories, parking slots, and reports
User Portal	Users can park vehicles, check parking history, and manage profiles
Parking Management	Tracks incoming and outgoing vehicles automatically
Reports	Generate reports based on date ranges

---

2. Technology Stack Used

Layer	Technology
Programming Language	Java
Web Framework	JSP and Servlets
Server	Apache Tomcat
Database	MySQL
Frontend	HTML, CSS, Bootstrap, JavaScript
Libraries	JDBC, Apache Commons DBCP

---

3. Key Features of the System

Feature	Admin	User
Login System	Yes	Yes
Dashboard	Yes	Yes
Add Vehicle	Yes	Yes
Manage Vehicle Categories	Yes	No
Parking Reports	Yes	No
Parking History	Yes	Yes
Change Password	Yes	Yes

---

4. System Modules

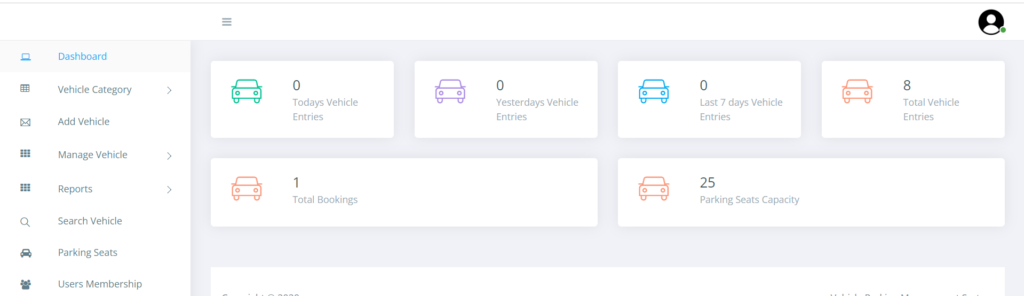

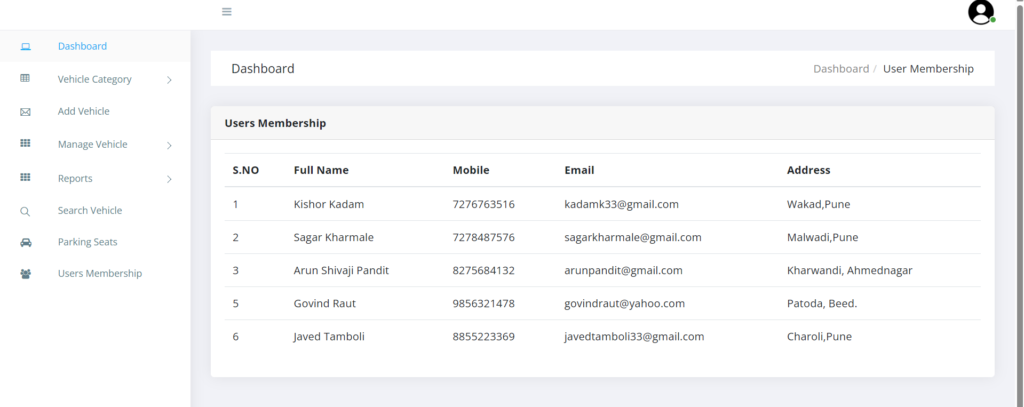

Admin Module

The admin has full control over the system and can manage all parking operations.

• Admin Login
• Dashboard with parking statistics
• Add and manage vehicle categories
• Add vehicles to parking
• View incoming vehicles
• Check-out vehicles
• Search vehicles using registration number
• Generate date-wise reports
• Configure parking slot capacity
• Update profile and password

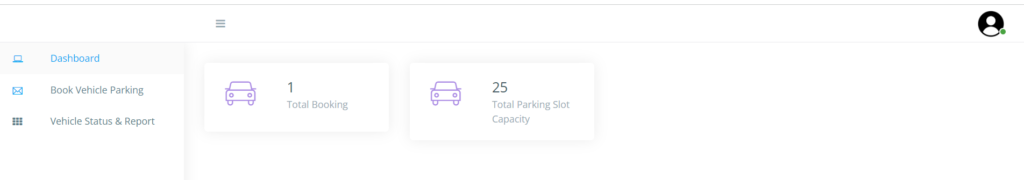

User Module

The user module allows registered users to manage their own vehicle parking activities.

• User registration and login
• Add own vehicle to parking
• View parking history
• Check-out parked vehicles
• View vehicle details
• Change password

---

Admin

User

5. Database Design

The system uses a MySQL database named vpmsdb. It contains several tables that store parking data.

Table Name	Description
tbladmin	Stores admin account information
tbluser	Stores registered user details
tblvehicle	Stores parked vehicle information
tblcategory	Vehicle category list
tblparkingseatcapacity	Total parking slot capacity

---

6. Parking Charge Logic

The system calculates parking charges automatically based on the vehicle category and total parking time.

Vehicle Category	Less than 8 Hours	8–16 Hours	16–24 Hours	More than 24 Hours
Six Wheeler	₹40	₹60	₹100	₹150
Four Wheeler	₹30	₹50	₹80	₹120
Two Wheeler	₹15	₹20	₹25	₹45
Bicycle	₹2	₹5	₹10	₹12

---

7. How to Run the Project

Step 1: Install Required Tools

• Java JDK 8 or above
• Apache Tomcat 9
• MySQL Server
• Eclipse IDE (optional)

Step 2: Import Database

Create a database named vpmsdb and import the SQL file.

mysql -u root -p

CREATE DATABASE vpmsdb;

USE vpmsdb;

SOURCE vpmsdb.sql;

Step 3: Configure Database Connection

Update the database credentials in the following file:

DatabaseConnection.java

jdbc:mysql://localhost:3306/vpmsdb

Step 4: Deploy the Project

1. Compile the project
2. Create a WAR file
3. Copy the WAR file into the Tomcat webapps folder
4. Start the Tomcat server

Step 5: Run the Application

http://localhost:8080/VehicleParkManagementSystem/

---

8. Default Login Credentials

Admin Login

Username	Password
kishor	java@1991

User Login

Username	Password
sagar	sagar@123
arun	arun@123
govind	12345

---

9. Why This Project is Good for College Students

• Demonstrates real-world parking management automation
• Uses Java web technologies like JSP and Servlets
• Includes database integration with MySQL
• Implements CRUD operations and session management
• Helps students understand full-stack Java web development

---

10. Advantages of the System

• Automates parking management
• Reduces manual work
• Generates reports quickly
• Maintains parking history records
• Supports multiple vehicle categories

---

11. Viva Questions and Answers

1. What is a Vehicle Parking Management System?

A Vehicle Parking Management System is a software application used to manage vehicle parking operations such as vehicle entry, exit, parking charges, and parking slot availability.

2. Which technologies are used in this project?

This project uses Java Servlets, JSP, MySQL database, Apache Tomcat server, and Bootstrap for the user interface.

3. How does the system calculate parking charges?

The system calculates charges based on vehicle category and total hours parked. Different vehicle types have different pricing rules.

---

12. Related Project

If you are looking for more Java projects, check this:

Vehicle Selling Purchasing Management System

---

Conclusion

The Vehicle Parking Management System is a practical Java web application that demonstrates how parking operations can be managed digitally. It includes multiple modules, database integration, and real-time parking charge calculation. This project is very useful for students who want to learn Java web development and build real-world applications.
