Creating Magic Web Component with Source Code

Web Component

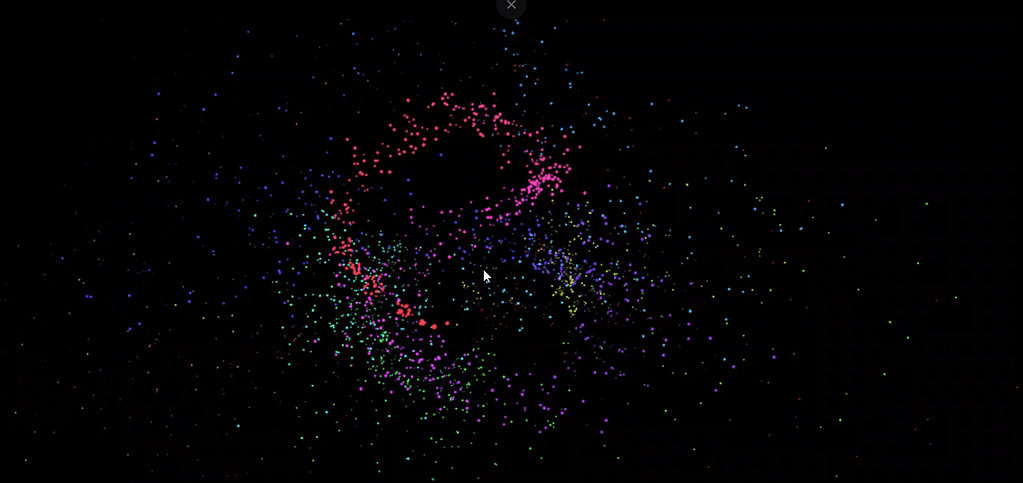

In the world of modern web development, adding interactive elements can elevate a website’s experience from simple browsing to dynamic engagement. The <pointer-particles> web component is an innovative tool that can help you achieve just that by adding captivating particle effects that follow the user’s mouse movements. This simple but powerful component creates a layer of responsiveness that enhances user experience, and with its straightforward setup, it’s accessible to developers of all levels.

Creating Interactive Magic Web Component with Source Code

Step 1: Include the <pointer-particles> Library

To use <pointer-particles>, you’ll need to add the script to your HTML file. You can either use a CDN link or download the library to host it locally.

Here’s an example using a CDN link:

<pointer-particles></pointer-particles>

Step 2: CSS Customize the Particle Settings

Now that the component is added, it’s time to configure it. You can use JavaScript or add specific attributes to the <pointer-particles> element itself for easy customization. Here’s an example:

* {
  box-sizing: border-box;
}

html,
body {
  height: 100%;
}

body {
  overflow: hidden;
  display: grid;
  color: white;
  background: black;
}

In this example, we’re setting:

  • color to a hex color code (e.g., pink particles),
  • particle-size to define particle dimensions,
  • trail-length to adjust how long the particle trail stays on the screen,
  • speed to control the animation speed.

With these simple configurations, you can tailor the particle effects to match your website’s style and feel.

Download New Real Time Projects :-Click here

Step 3: JS

class PointerParticle {
  constructor(spread, speed, component) {
    const { ctx, pointer, hue } = component;

    this.ctx = ctx;
    this.x = pointer.x;
    this.y = pointer.y;
    this.mx = pointer.mx * 0.1;
    this.my = pointer.my * 0.1;
    this.size = Math.random() + 1;
    this.decay = 0.01;
    this.speed = speed * 0.08;
    this.spread = spread * this.speed;
    this.spreadX = (Math.random() - 0.5) * this.spread - this.mx;
    this.spreadY = (Math.random() - 0.5) * this.spread - this.my;
    this.color = `hsl(${hue}deg 90% 60%)`;
  }

  draw() {
    this.ctx.fillStyle = this.color;
    this.ctx.beginPath();
    this.ctx.arc(this.x, this.y, this.size, 0, Math.PI * 2);
    this.ctx.fill();
  }

  collapse() {
    this.size -= this.decay;
  }

  trail() {
    this.x += this.spreadX * this.size;
    this.y += this.spreadY * this.size;
  }

  update() {
    this.draw();
    this.trail();
    this.collapse();
  }
}

class PointerParticles extends HTMLElement {
  static register(tag = "pointer-particles") {
    if ("customElements" in window) {
      customElements.define(tag, this);
    }
  }

  static css = `
    :host {
      display: grid;
      width: 100%;
      height: 100%;
      pointer-events: none;
    }
  `;

  constructor() {
    super();

    this.canvas;
    this.ctx;
    this.fps = 60;
    this.msPerFrame = 1000 / this.fps;
    this.timePrevious;
    this.particles = [];
    this.pointer = {
      x: 0,
      y: 0,
      mx: 0,
      my: 0
    };
    this.hue = 0;
  }

  connectedCallback() {
    const canvas = document.createElement("canvas");
    const sheet = new CSSStyleSheet();

    this.shadowroot = this.attachShadow({ mode: "open" });

    sheet.replaceSync(PointerParticles.css);
    this.shadowroot.adoptedStyleSheets = [sheet];

    this.shadowroot.append(canvas);

    this.canvas = this.shadowroot.querySelector("canvas");
    this.ctx = this.canvas.getContext("2d");
    this.setCanvasDimensions();
    this.setupEvents();
    this.timePrevious = performance.now();
    this.animateParticles();
  }

  createParticles(event, { count, speed, spread }) {
    this.setPointerValues(event);

    for (let i = 0; i < count; i++) {
      this.particles.push(new PointerParticle(spread, speed, this));
    }
  }

  setPointerValues(event) {
    this.pointer.x = event.x - this.offsetLeft;
    this.pointer.y = event.y - this.offsetTop;
    this.pointer.mx = event.movementX;
    this.pointer.my = event.movementY;
  }

  setupEvents() {
    const parent = this.parentNode;

    parent.addEventListener("click", (event) => {
      this.createParticles(event, {
        count: 300,
        speed: Math.random() + 1,
        spread: Math.random() + 50
      });
    });

    parent.addEventListener("pointermove", (event) => {
      this.createParticles(event, {
        count: 20,
        speed: this.getPointerVelocity(event),
        spread: 1
      });
    });

    window.addEventListener("resize", () => this.setCanvasDimensions());
  }

  getPointerVelocity(event) {
    const a = event.movementX;
    const b = event.movementY;
    const c = Math.floor(Math.sqrt(a * a + b * b));

    return c;
  }

  handleParticles() {
    for (let i = 0; i < this.particles.length; i++) {
      this.particles[i].update();

      if (this.particles[i].size <= 0.1) {
        this.particles.splice(i, 1);
        i--;
      }
    }
  }

  setCanvasDimensions() {
    const rect = this.parentNode.getBoundingClientRect();

    this.canvas.width = rect.width;
    this.canvas.height = rect.height;
  }

  animateParticles() {
    requestAnimationFrame(() => this.animateParticles());

    const timeNow = performance.now();
    const timePassed = timeNow - this.timePrevious;

    if (timePassed < this.msPerFrame) return;

    const excessTime = timePassed % this.msPerFrame;

    this.timePrevious = timeNow - excessTime;

    this.ctx.clearRect(0, 0, this.canvas.width, this.canvas.height);
    this.hue = this.hue > 360 ? 0 : (this.hue += 3);

    this.handleParticles();
  }
}

PointerParticles.register();

https://updategadh.com/category/php-project

Real-World Applications

<pointer-particles> offers a touch of flair that can be used effectively in several scenarios:

  1. Landing Pages: Attract attention on introductory pages by enhancing the user’s first interaction with the site.
  2. Interactive Presentations: Use particles to guide users’ attention through complex information, adding subtle direction and focus.
  3. Gaming Websites: Increase engagement by creating a responsive environment that’s visually exciting for users.
  4. Personal Portfolios: Make your portfolio stand out with a bit of interactivity that demonstrates your attention to detail and modern design skills.
