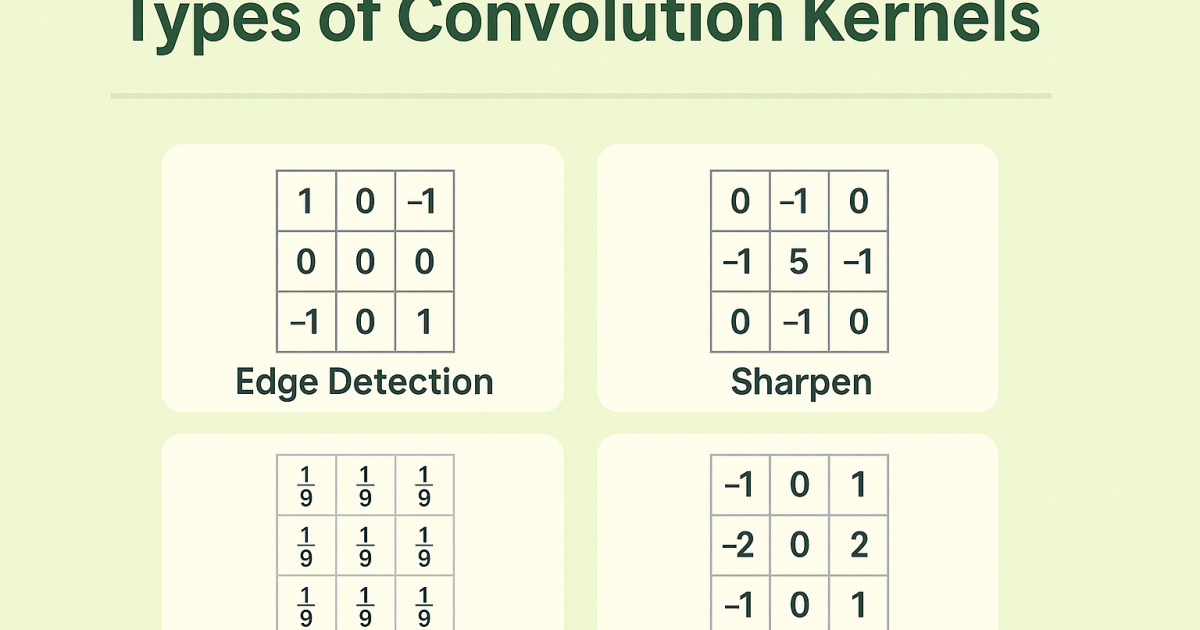

Types of Convolution Kernels

Types of Convolution Kernels

Convolution kernels are fundamental tools in image processing, playing a pivotal role in tasks ranging from blurring and sharpening to edge detection and feature extraction. These compact matrices enable a wide range of operations that enhance, filter, or transform information in visual data. In this article, we’ll explore the different types of convolution kernels, examine their characteristics, and discuss their impact on digital images.

Machine Learning Tutorial:-Click Here
Data Science Tutorial:-Click Here
Complete Advance AI topics:-CLICK HERE
DBMS Tutorial:-CLICK HERE

What are Convolutional Kernels?

Convolutional kernels—often simply called kernels—are small, fixed-size matrices used in image processing and convolutional neural networks (CNNs). These kernels are applied to input data through a mathematical operation known as convolution. In essence, the kernel matrix is slid over the image, and at each location, an element-wise multiplication is performed between the kernel and a local region of the image, followed by summation.

In the context of CNNs, kernels serve as feature detectors. Each kernel learns to respond to a specific pattern, such as edges, textures, or shapes. By combining multiple layers of kernels, CNNs can identify complex features and patterns, enabling advanced tasks like image classification, object detection, and semantic segmentation.

Kernel size and values (weights) play a crucial role in determining the scope and specificity of feature extraction. During training, CNNs learn optimal kernel weights to capture meaningful features while ignoring noise or irrelevant data.

Types of Convolutional Kernels

1. Identity Kernel

The identity kernel is the simplest form of kernel used in image processing. It acts as a baseline filter, returning the image unchanged. This kernel typically has a single value of 1 at its center, with all other elements set to 0.

Example:

[0 0 0]
[0 1 0]
[0 0 0]

Use Case:
Acts as a control in experiments or when no image transformation is desired. It helps in testing or comparing the effects of other kernels.

2. Box Blur Kernel

Also known as the mean kernel, the box blur kernel is used to blur and smooth images by averaging the values of a pixel and its neighbors.

Example (3×3):

[1/9 1/9 1/9]
[1/9 1/9 1/9]
[1/9 1/9 1/9]

Effect:
Reduces high-frequency content and noise, resulting in a smoother image. Ideal for preprocessing tasks like denoising or aesthetic enhancement in design applications.

3. Gaussian Blur Kernel

The Gaussian blur kernel applies a weighted average where pixels closer to the center have more influence. This leads to a more natural-looking blur, mimicking how light disperses in real-world lenses.

Characteristics:

• Derived from the Gaussian distribution
• Centered pixels are weighted more heavily than those farther away

Use Case:
Preferred for realistic blurring, depth-of-field simulation, and reducing image noise in photography and computer vision.

4. Edge Detection Kernels

Edge detection kernels highlight transitions in intensity, revealing boundaries between objects or regions in an image.

Common Variants:

• Sobel Operator: Uses two 3×3 kernels to detect vertical and horizontal edges.
• Prewitt Operator: Similar to Sobel, but with slightly different weight distributions.
• Roberts Cross Operator: Utilizes 2×2 kernels for diagonal edge detection and is computationally efficient.

Applications:
Used in object detection, image segmentation, and feature extraction. Essential in computer vision for understanding the structure of objects in a scene.

5. Sharpening Kernels

Sharpening kernels emphasize high-frequency components by enhancing edge contrast. These filters are used to bring out details and improve image clarity.

Notable Techniques:

• Laplacian Operator: Detects regions of rapid intensity change.
• Unsharp Masking: Involves subtracting a blurred version of the image from the original to enhance sharpness.

Use Case:
Commonly used in photo editing software to improve image quality. However, overuse can introduce noise and unwanted artifacts.

6. Embossing Kernel

The embossing kernel gives an image a three-dimensional effect by highlighting edges with a light source direction. It simulates raised or recessed features, making the image appear textured.

Example (3×3):

[-2 -1 0]
[-1 1 1]
[ 0 1 2]

Effect:
Emphasizes surface gradients and depth, often used in artistic renderings and design tools to add visual interest or simulate engraving.

7. Custom Kernels

Custom kernels allow users to define their own convolution matrices to suit specific image processing tasks. This flexibility is particularly useful in research and specialized applications.

Benefits:

• Tailored to domain-specific feature extraction
• Enables creative visual effects and enhancements

Use Case Examples:

• Detecting anomalies in medical imaging
• Designing stylistic filters for digital art
• Performing experimental transformations in academic studies

Complete Python Course with Advance topics:-Click Here
SQL Tutorial :-Click Here

Download New Real Time Projects :-Click here

Conclusion

Convolution kernels are the building blocks of modern image processing and computer vision. Whether you’re enhancing, blurring, detecting edges, or sharpening, each kernel type serves a distinct purpose. Understanding the characteristics and applications of these kernels empowers developers, designers, and researchers to make informed decisions when working with visual data.

From the basic identity kernel to advanced edge detection and custom designs, convolution kernels continue to unlock new possibilities in both practical and creative fields of image analysis.
